Tracks for versatile testing
IN THE 300 HECTARE AREA WE OFFER EVERY TRACK YOU COULD DREAM OF FROM DRY AND WET TESTING TO THE HIGH-SPEED OVAL.
IN THE 300 HECTARE AREA WE OFFER EVERY TRACK YOU COULD DREAM OF FROM DRY AND WET TESTING TO THE HIGH-SPEED OVAL.

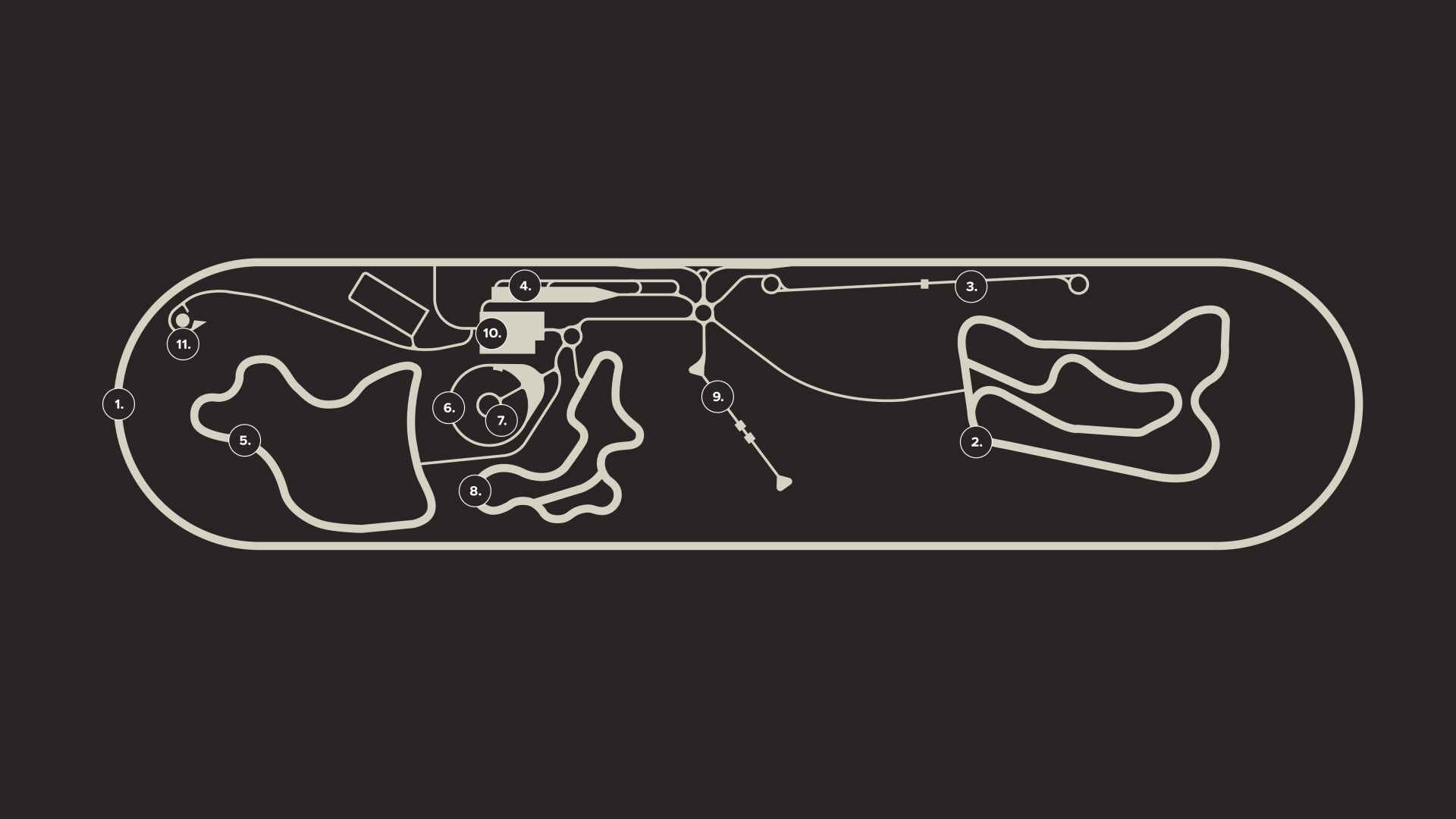

1. High speed oval track
2. Dry handling track
3. Overrun test track
4. Braking and aquaplaning tracks
5. Comfort track
6. Lateral aquaplaning track
7. Inner wet circle track
8. Wet handling track
9. Pass-by noise track
10. Workshops and offices
11. Visitor center

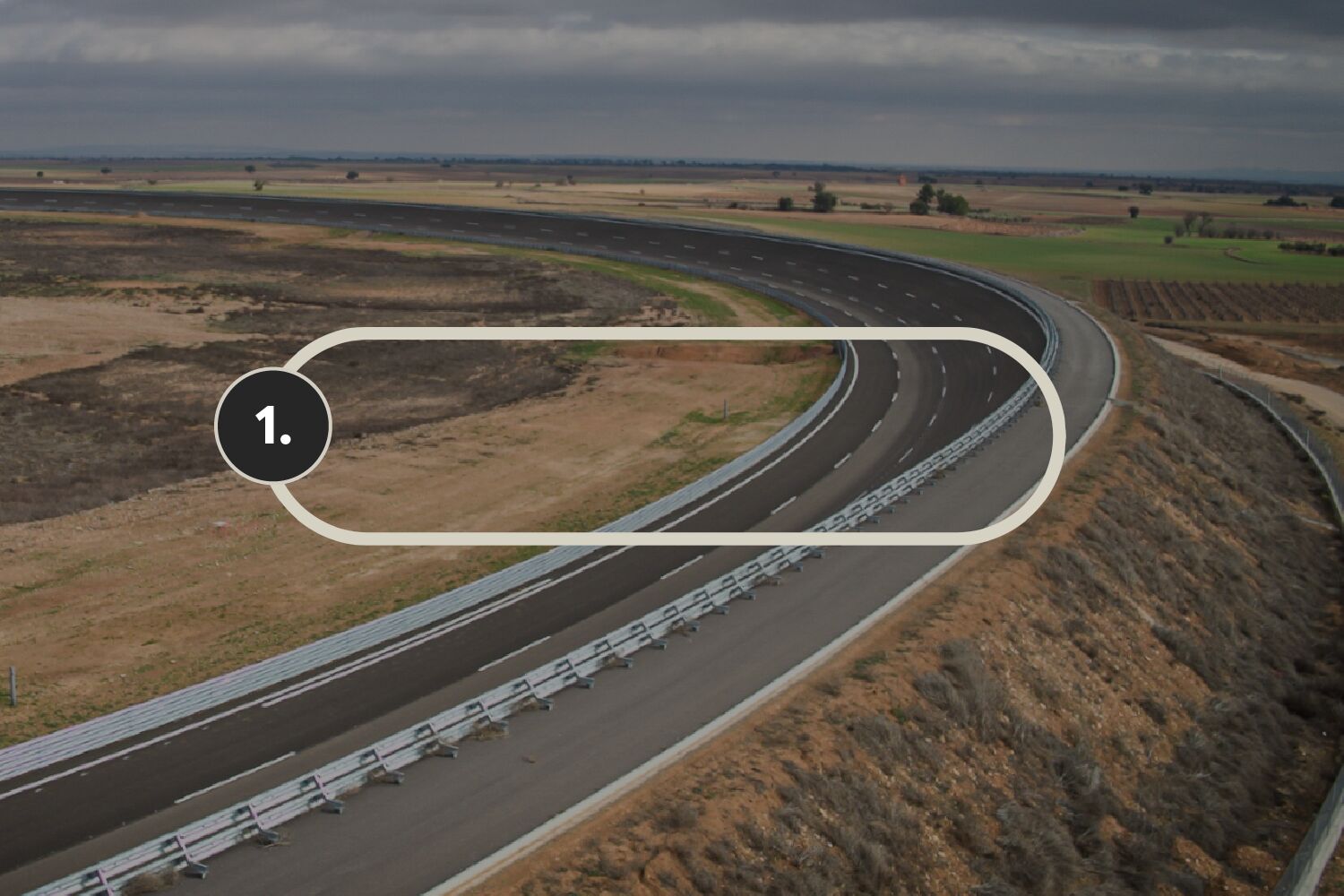

1. High speed oval track
High speed track designed for neutral speed of 200 km/h.
TOTAL LENGTH: 7,244 m
Straight Sections: 2,200 m / Curved Sections: 777 m / Clothoid Sections: 322,5 m
CAMBER: 2%, 41,3°
SECTION: Straight Section: 5 lanes of 4 m / Curved Section: 4 lanes of 4 m
LONGITUDINAL SLOPE: Straight Section: 0,16% / Curved Section: Max 2%
RADIUS: 3,50 m
2. Dry handling track
Track for dry grip tests.
TOTAL LENGTH: 3,382 m
CAMBER: 1,5%
SECTION: 1 lane of 5 m and safety areas of 10 m
LONGITUDINAL SLOPE: Min 0,16%
RADIUS: Min 40 m, Max 439 m
3. Overrun test track
Tracks for measurements of pavement wear due to the use of studded winter tires.
TOTAL LENGTH: 800 m
CAMBER: 1,5%
SECTION: 1 lane of 5 m. Central width of 17 m
LONGITUDINAL SLOPE: Horizontal, Max 0,5%
4. Braking and aquaplaning tracks
Braking tracks in wet and dry sections, with 4 parallel tracks of different finishes and an additional track for longitudinal aquaplaning.
TOTAL LENGTH: 489 m
CAMBER: 0,5%
SECTION: 39,5 m total. 4 tracks of 4 m and 1 track of 3 m with three safety areas
LONGITUDINAL SLOPE: Horizontal

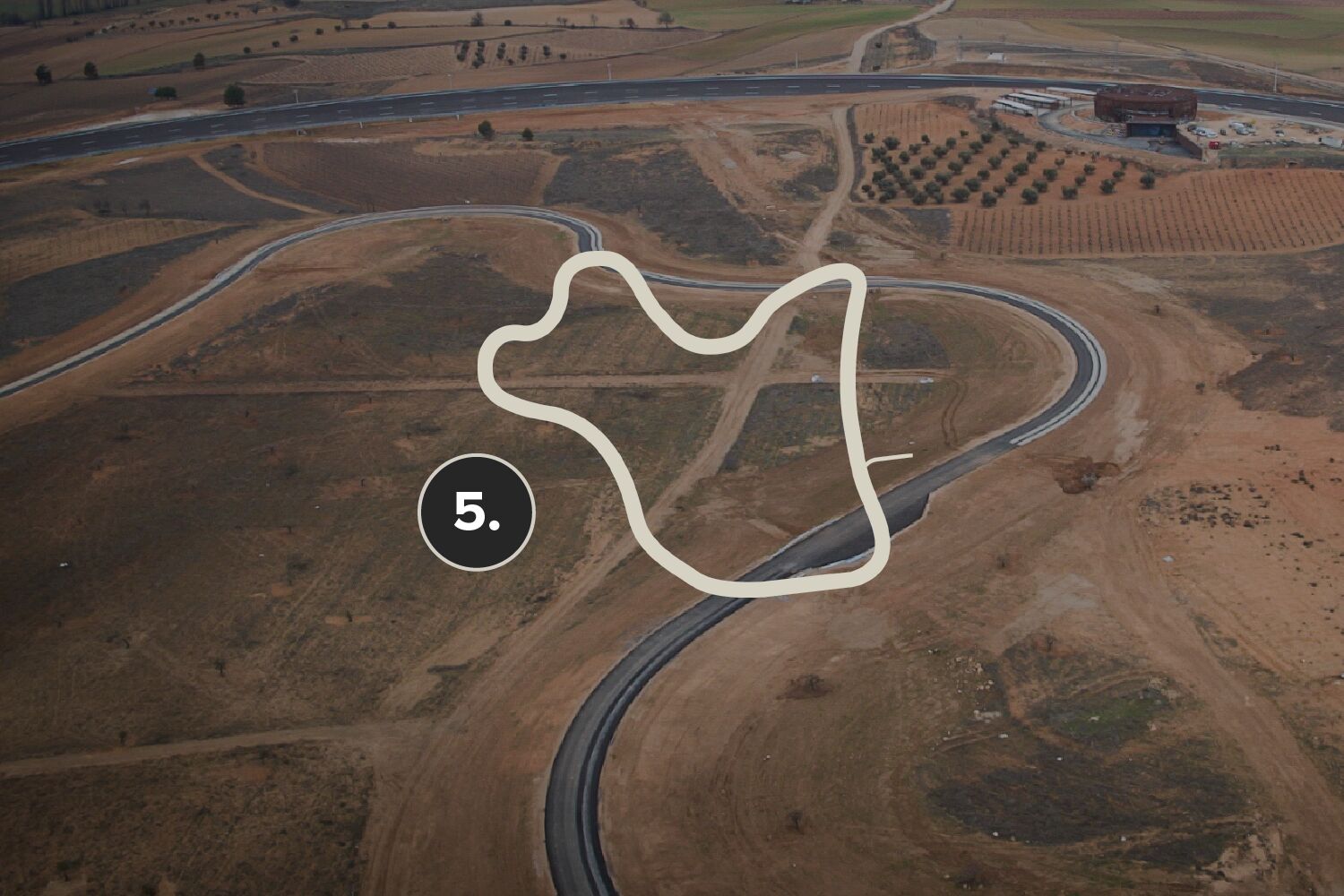

5. Comfort track
Track that simulates a conventional road with different surfaces and finishes.
TOTAL LENGTH: 1,909 m
CAMBER: Variable
SECTION: 1 lane 5 m
LONGITUDINAL SLOPE: Min 0,5%, Max 6%
RADIUS: Min 30 m, Max 324 m

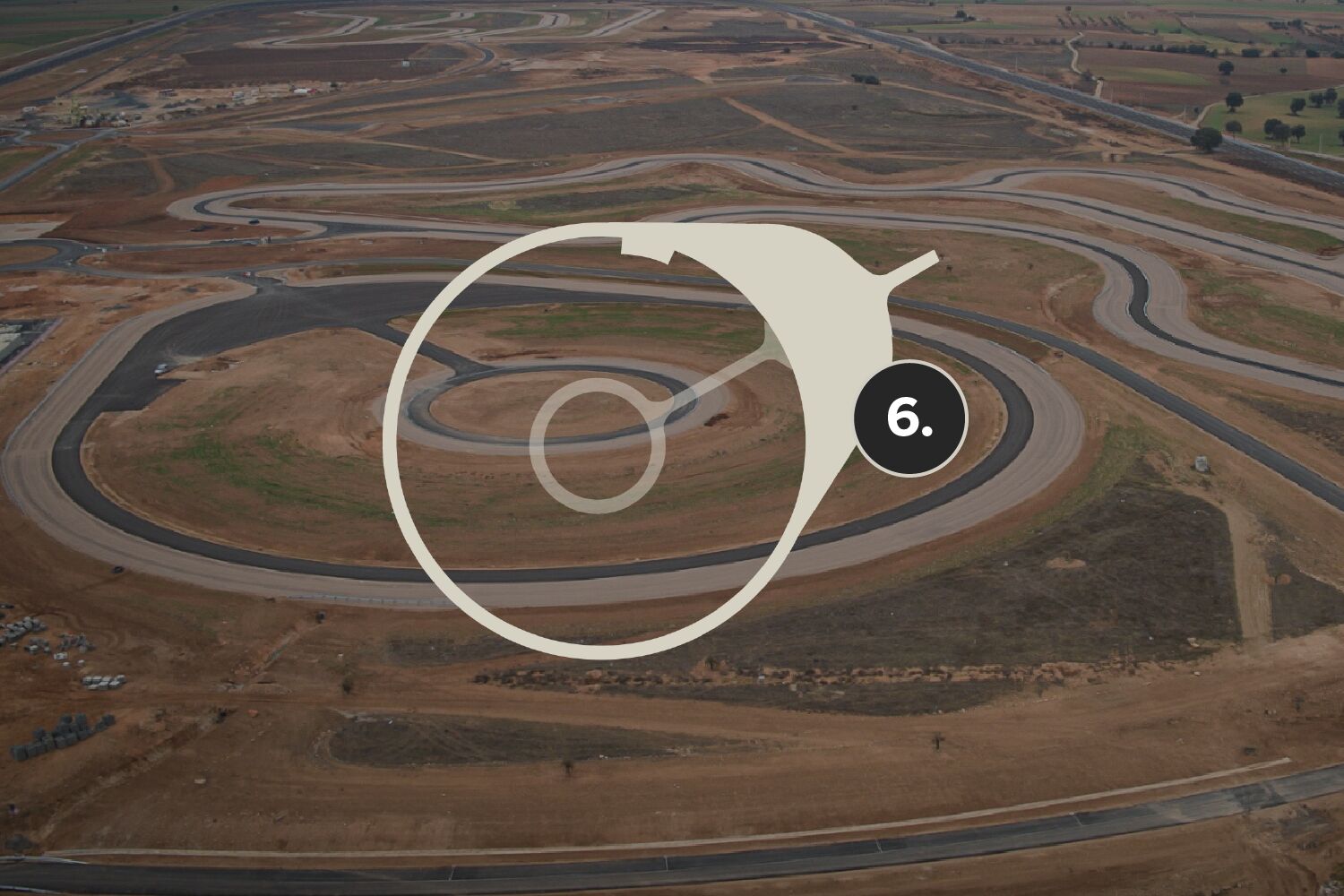

6. Lateral aquaplaning track
TOTAL LENGTH: 656,6 m
CAMBER: 1,5%
SECTION: 1 lane of 5 m and safety areas of 10 m
LONGITUDINAL SLOPE: Horizontal
RADIUS: 104,5 m

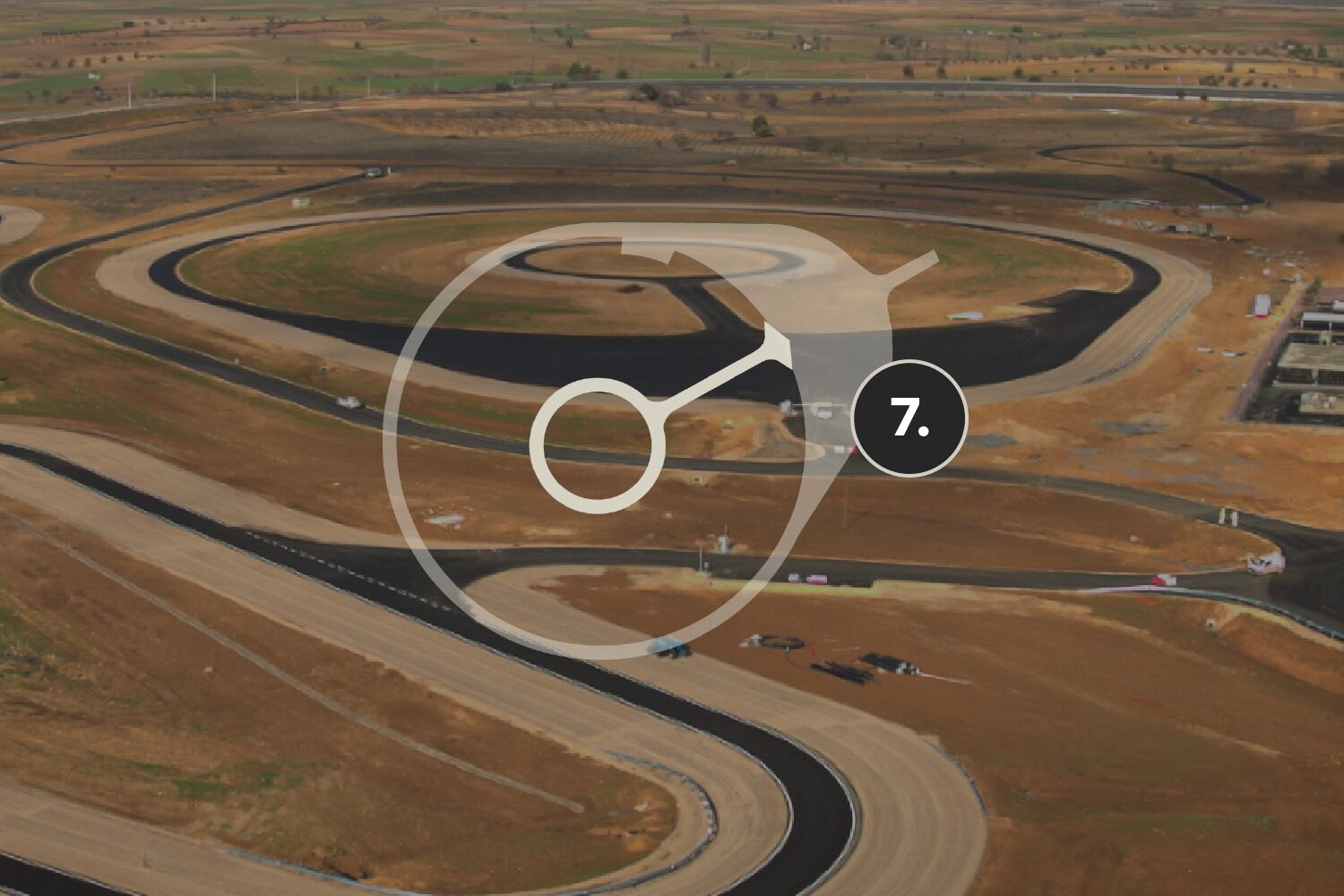

7. WET CIRCLE TRACK
TOTAL LENGTH: 204 m
CAMBER: 1,5%
SECTION: 1 lane of 5 m and safety areas of 5 m
LONGITUDINAL SLOPE: Horizontal
RADIUS: 32,5 m
8. Wet handling track
Track for grip studies in wet surfaces.
TOTAL LENGTH: 1,434 m
CAMBER: 1,5%
SECTION: 1 lane of 5 m and safety areas of 10 m
LONGITUDINAL SLOPE: 1 %
RADIUS: Min 30 m, Max 170 m

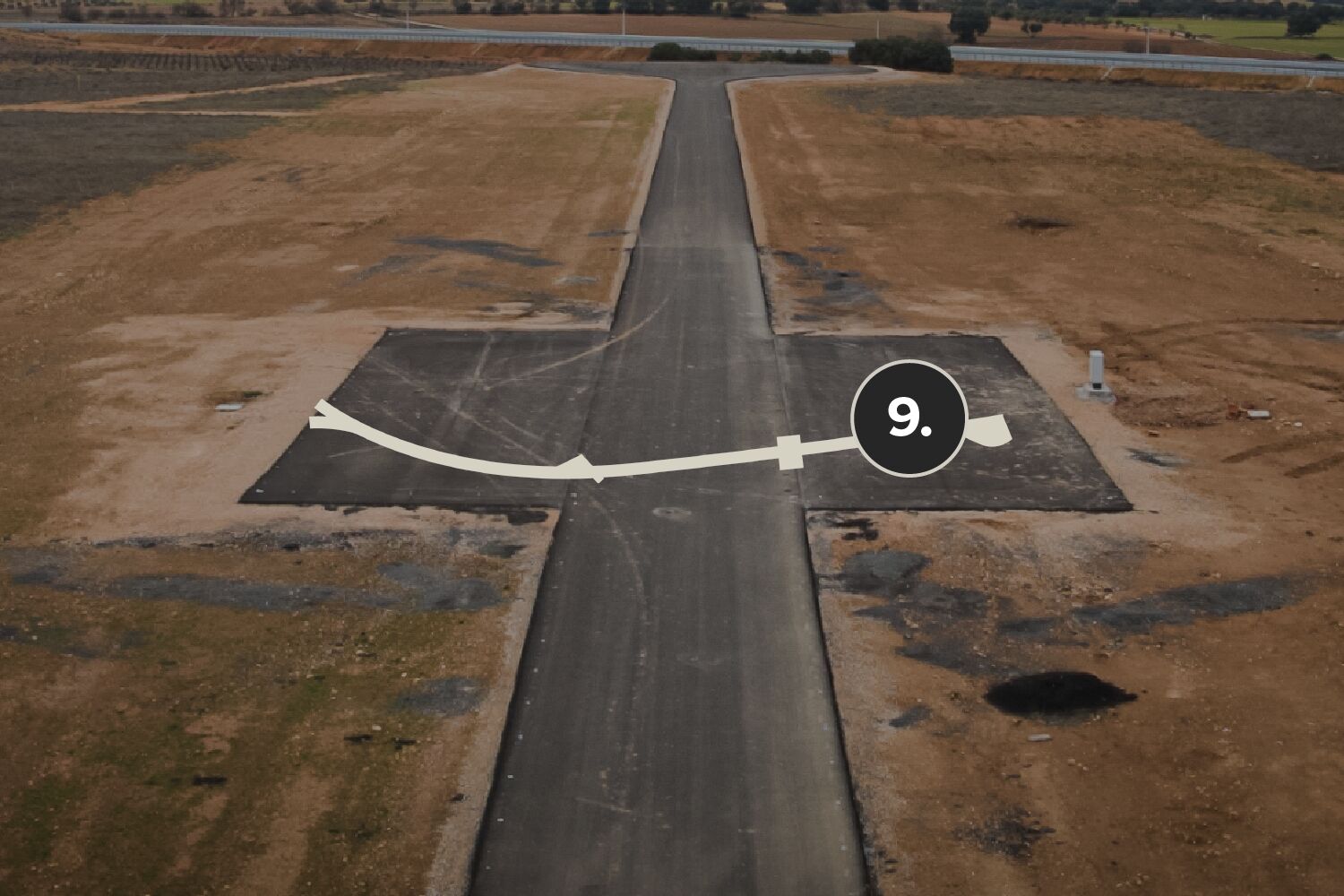

9. Pass-by noise track
Pass by noise track for noise checking and grip contact wheel-asphalt.
TOTAL LENGTH: 324 m
CAMBER: 1%
SECTION: 1 lane of 5 m
LONGITUDINAL SLOPE: Horizontal

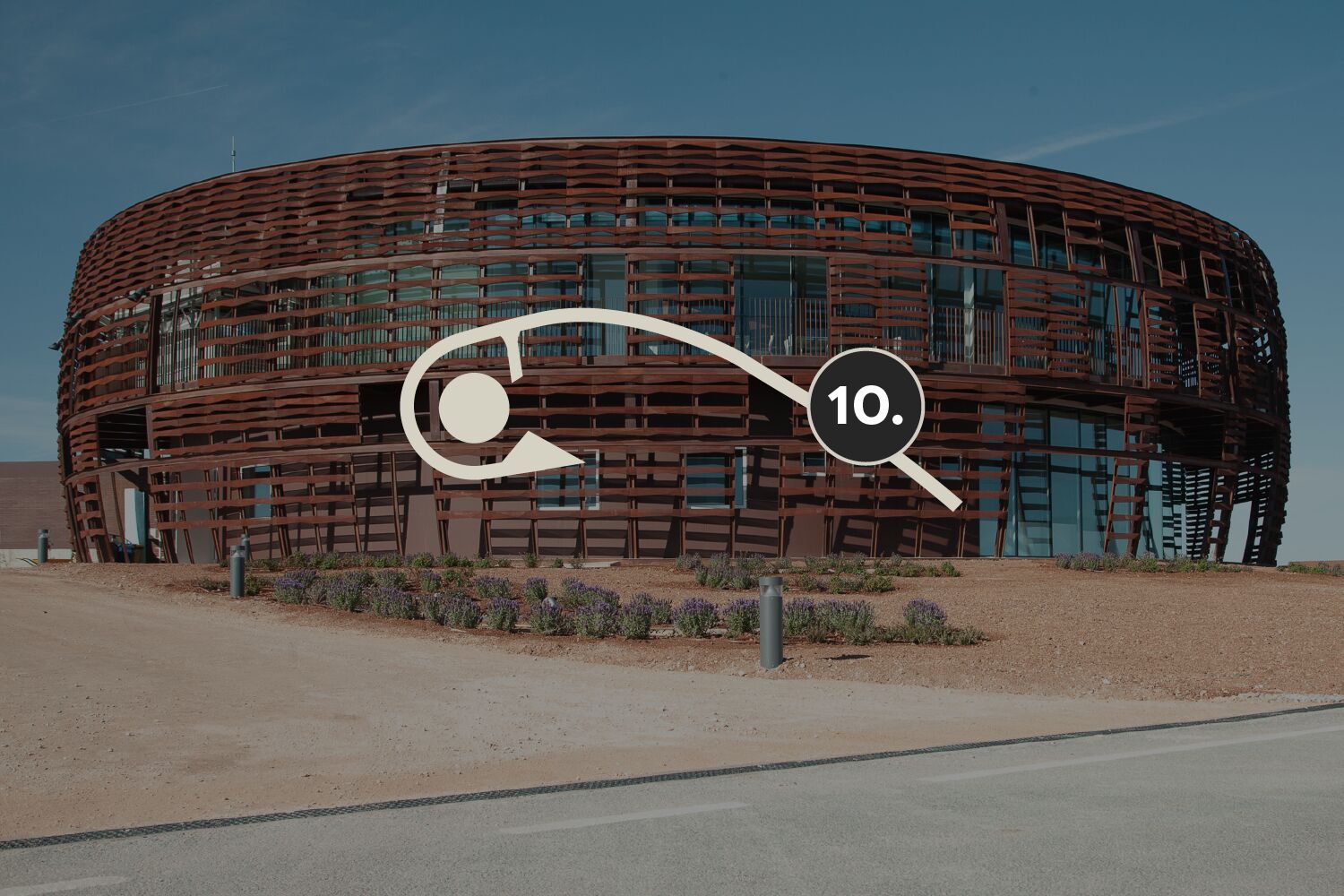

10. visitor center
Training and customer service building with meeting rooms, an auditorium, a restaurant and even a Finnish sauna.

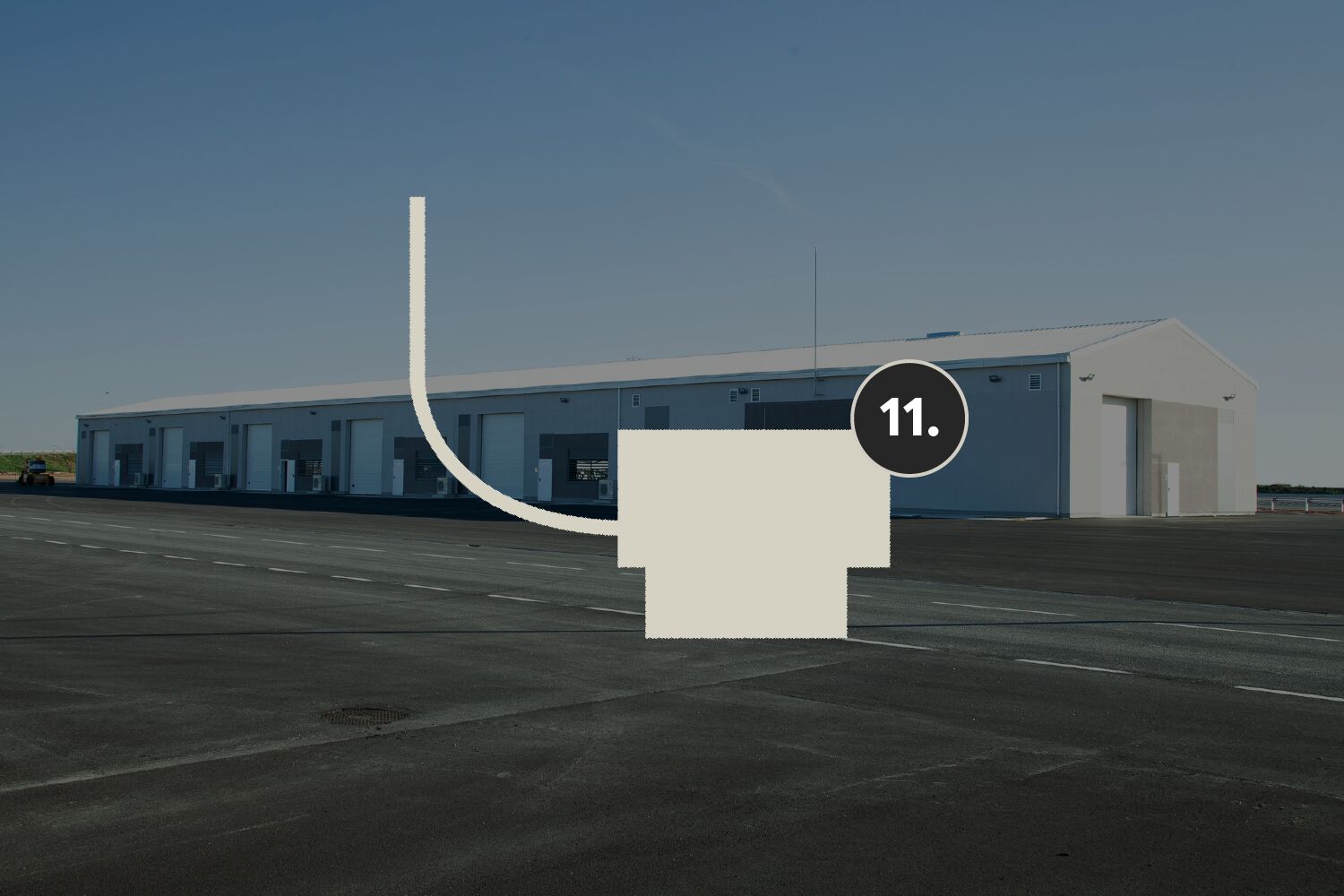

11. Workshops and offices
Connection with the local road TO-2581.
- Garage building with warehouse capacity
- Five boxes which can be used separately and independently
- Each box contains two vehicle lifts and electric vehicle charging capability
- Each box contains an office with a mini-kitchen
- Tire mounting and balancing services available
TOTAL LENGTH: 352,8 m
CAMBER: 1,5%
SECTION: 2 lanes of 3,5 m width and shoulders BRA 1,50 m
LONGITUDINAL SLOPE: Max 5%
CONTACT US TO LEARN MORE
Are you interested in learning more about the opportunities the Nokian Tyres Spain Test Center has to offer?
Contact us and we are happy to tell you more and help with a booking.
